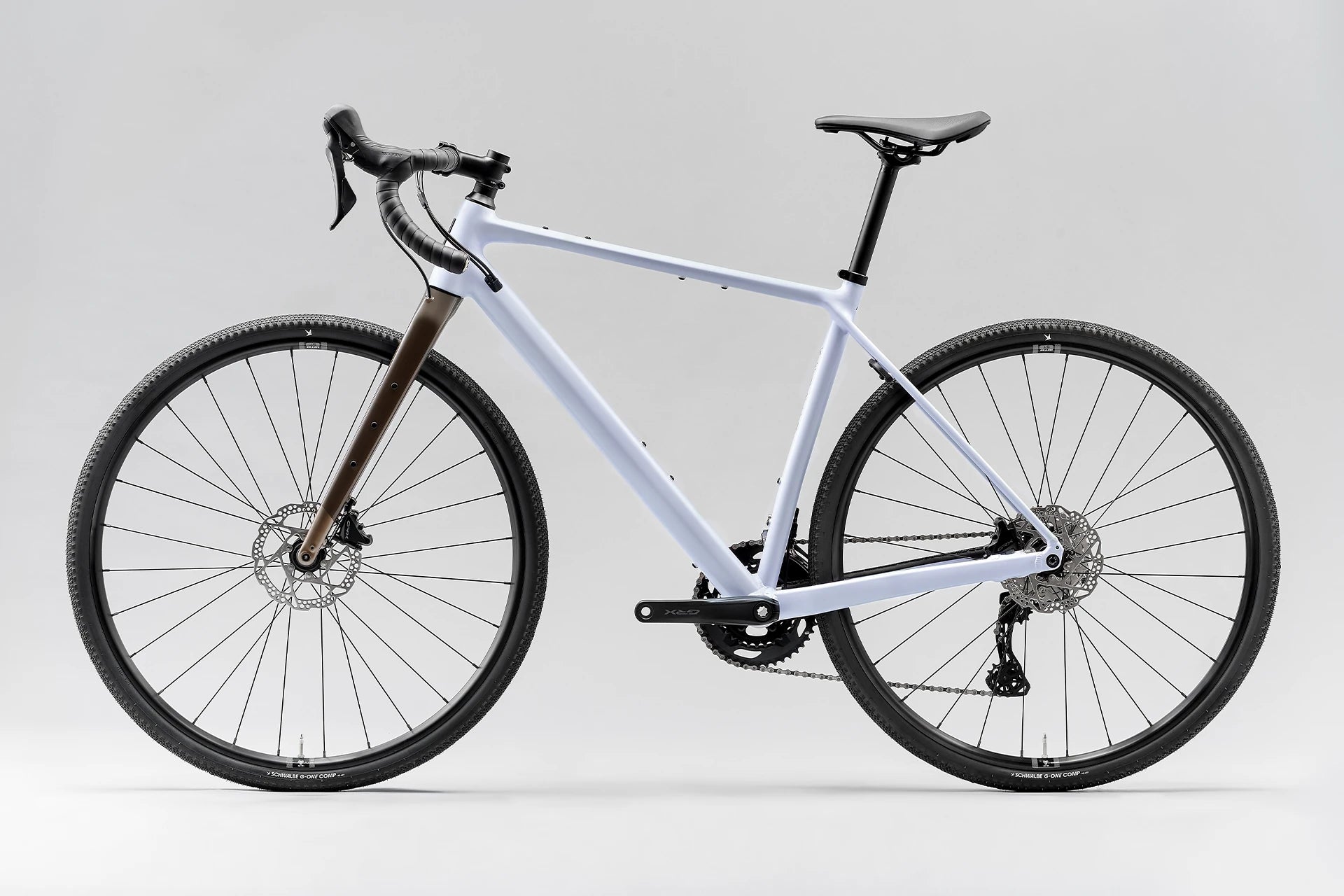

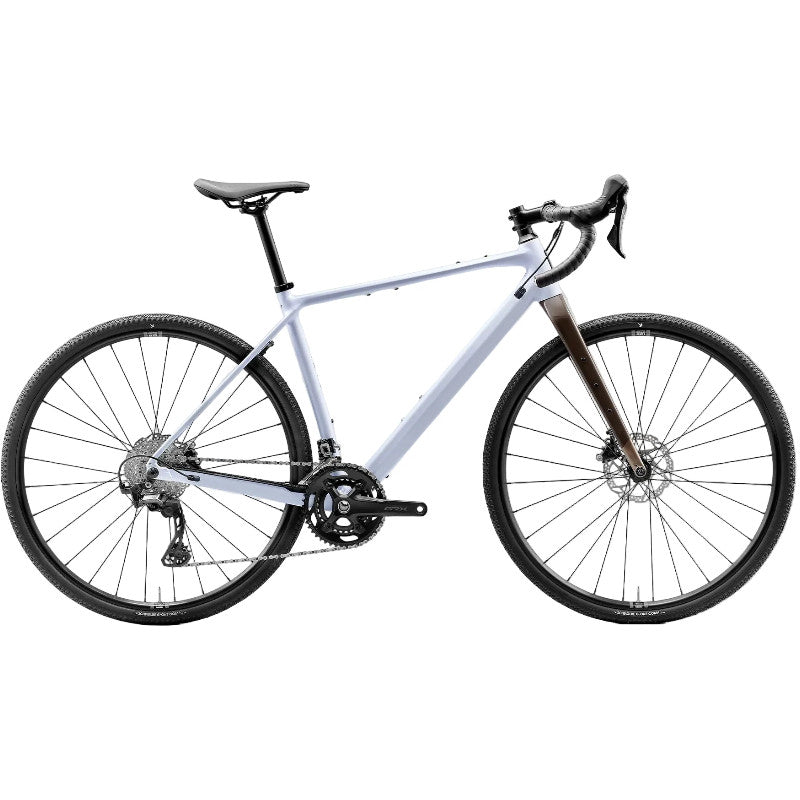

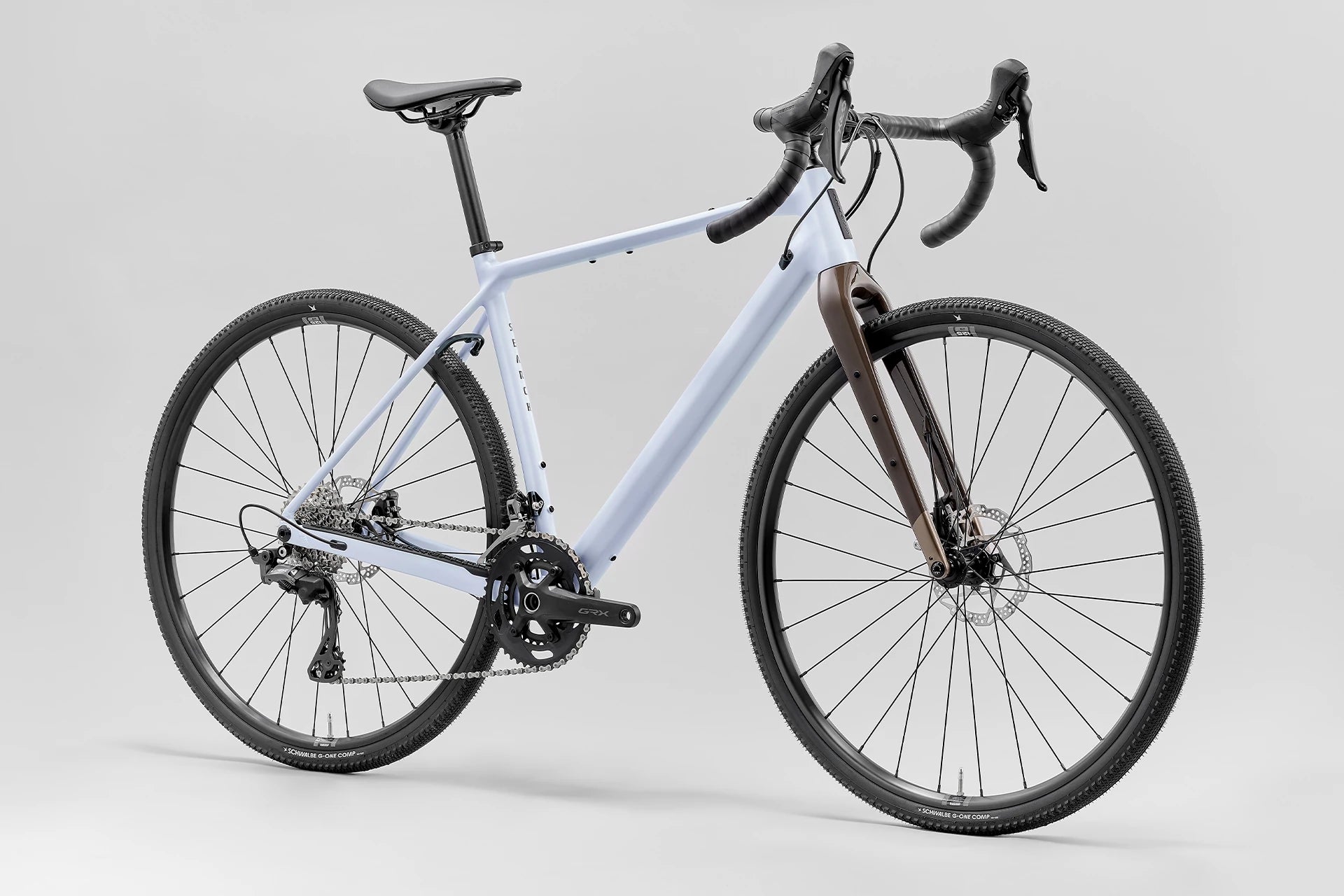

Norco Search A GRX - Ice White

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A GRX is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano GRX 2x12 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.

A progressive, modern gravel bike.

Search A GRX features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

Details

• Progressive and confidence-inspiring
• A lightweight frame with options
• Simplified Maintenance
• Wider Tire Clearance
• Adventure-Ready Mounts
• No Other Way Limited Lifetime Warranty

Specifications

Frameset
Frame    Search Butted Aluminum w/Smooth Welds

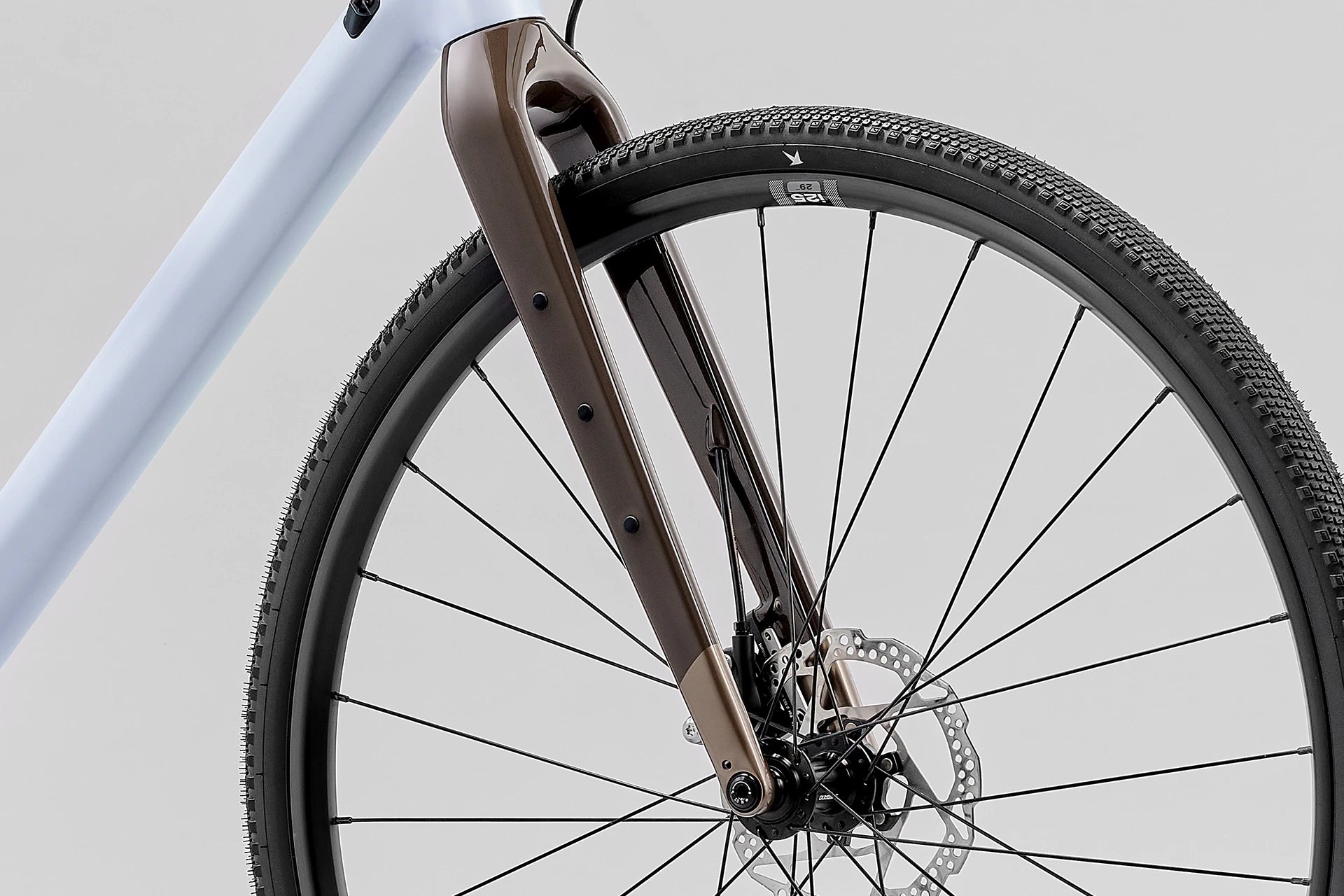

Fork    Search Carbon, 51mm Offset, 12x100mm TA

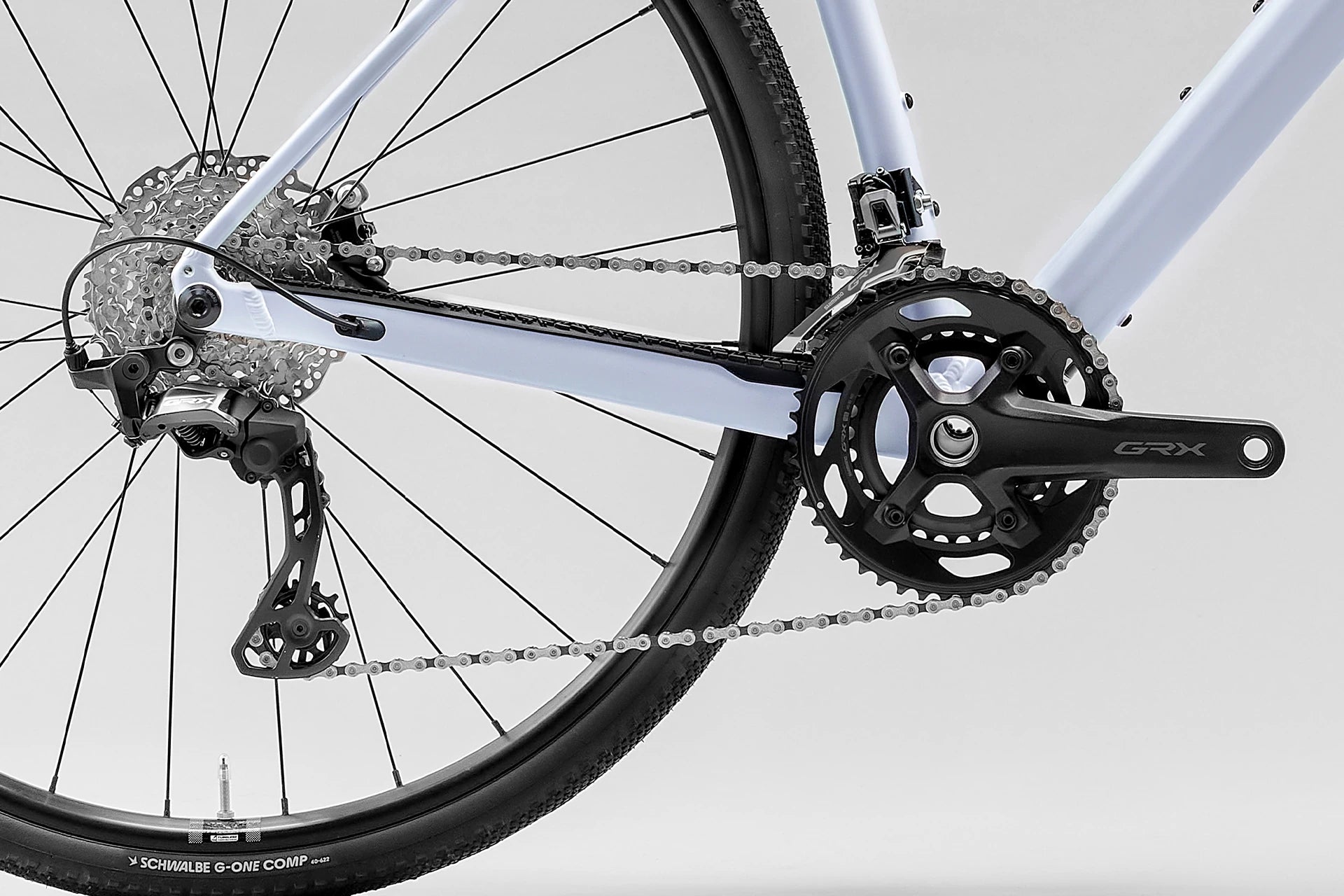

Drivetrain
Rear Shifter    Shimano GRX ST610, 12sp
Rear Derailleur    Shimano GRX GS RD-RX820, 12sp
Front Shifter    Shimano GRX ST610, 2x
Front Derailleur    Shimano GRX FD-RX820,Braze On, Down Swing
Crankset    Shimano GRX FC-RX610, 46-30T, 47CL, 165mm (S1,S2) - 170mm (S3,S4) - 172.5mm (S5)
Bottom Bracket    Shimano SM-BBR60, 68mm BSA
Cassette    Shimano CS-HG710, 11-36T, 12sp
Chain    KMC X12
Brakes
Front Brake    Shimano BR-RX400, Resin w/o Fin
Front BrakeRotor    Shimano SM-RT64, 160mm, C-lock
Rear Brake    Shimano BR-RX400, Resin w/o Fin
Rear BrakeRotor    Shimano SM-RT64, 160mm, C-lock
Brake Levers    Shimano GRX ST610
Components

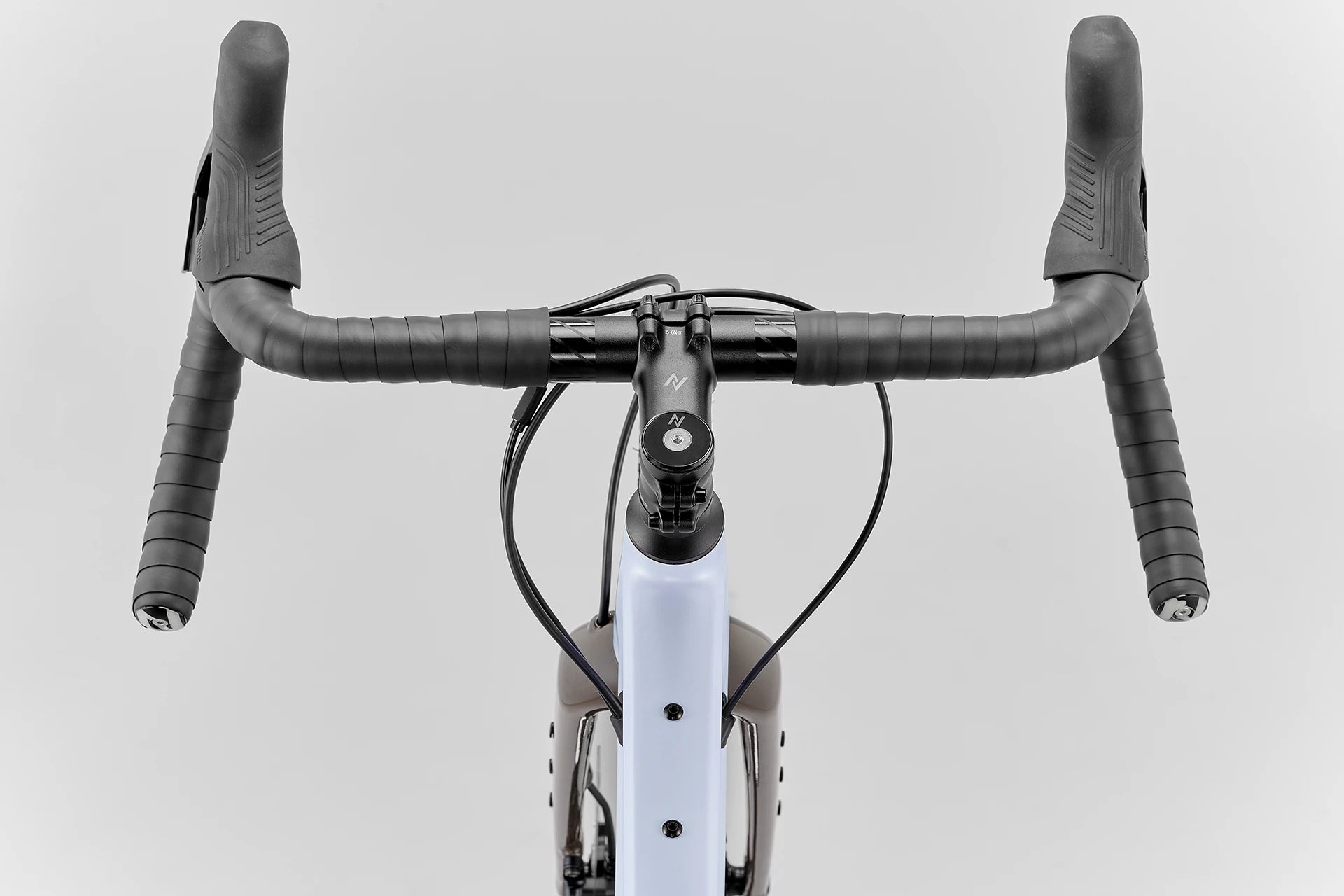

Handlebar    Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
Stem    Norco SL Alloy 70mm Length, 31.8mm Clamp
Seatpost    Norco Alloy, 27.2mm, 12Deg Offset, 300mm length
Headset    FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Saddle    Selle Royale SRX Gravel, 148mm
Grips    Griptacular Shockproof Tape 3mm
Seatpost Clamp    Norco Aluminum, 31.8mm ID
Wheels
Front Hub    Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock
Rear Hub    Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H, C-lock
Rims    WTB ST i25 2.0, 28h, 25mm ID
Rear Tire    Schwalbe G-One All Round, Race Guard, 700x40c
Rear Tire    Schwalbe G-One All Round, Race Guard, 700x40c
Spokes/Nipples    Sapim Leader 2.0mm - Black w/Black Brass Nipples
Valves    WTB TCS Tubeless Valve, Brass
Sealant    WTB TCS Tubeless Tire Sealant, 8oz/236ml
Rim Tape    WTB TCS 2.0 Solid Strip
Weight
Weight    10.6 kg (23 lbs. 8 oz.)
Weight Size    S3
